Hettich Telescopic Drawer Channel

Hettich has 4 types of telescopic drawer channels.

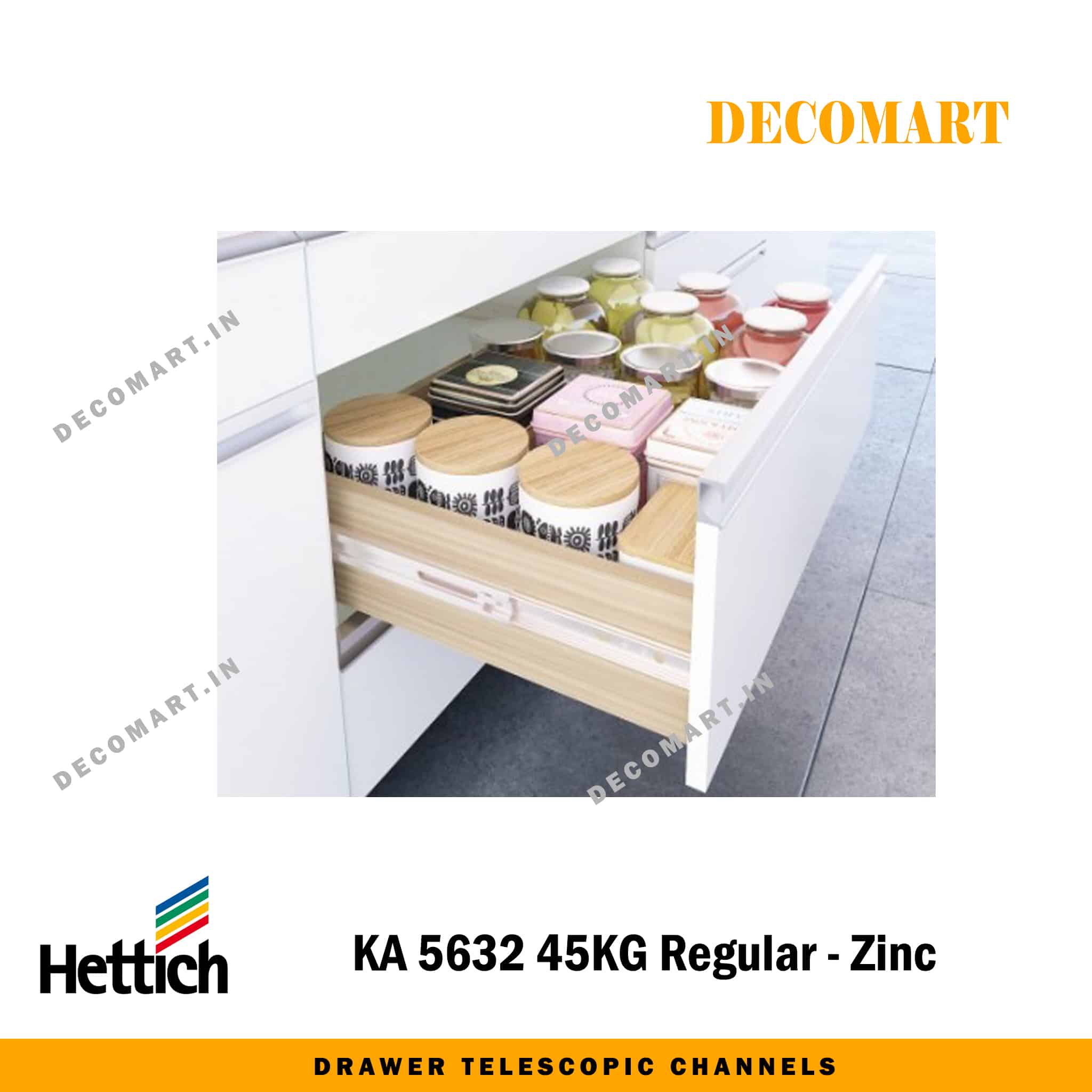

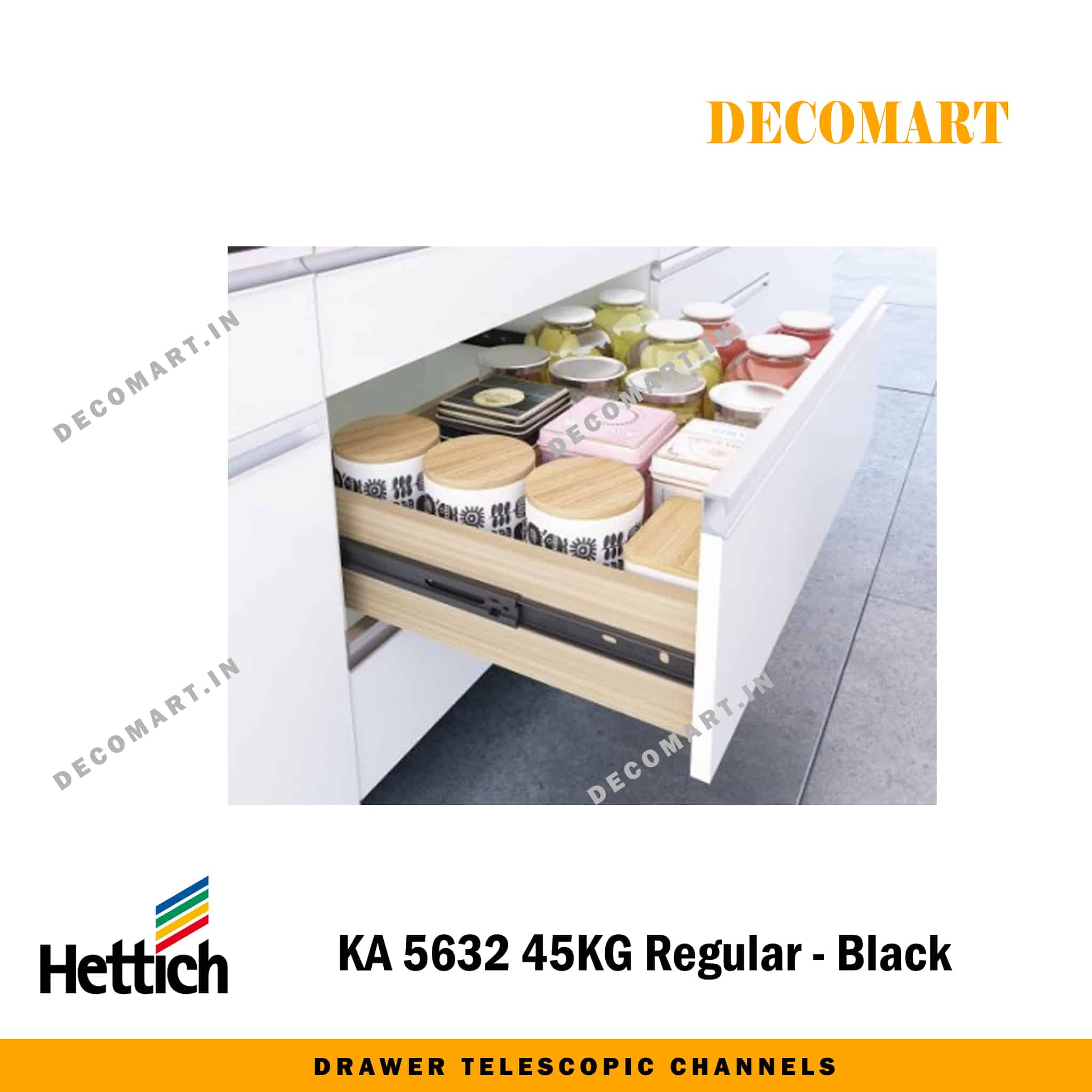

Specification	Regular -KA 5632	Softclose -KA 4732 (Indian)	Softclose -KA 4532 (German)	Push to Open -KA 4532
Motion Technology	Non Soft close	Soft close	Soft close	Push to Open
Material	Galvanised steel, blue passivated	Galvanised steel, blue passivated	Galvanised steel, blue passivated	Galvanised steel, blue passivated
Load Capacity	45 kg	35 kg	35 kg	35 kg
Usage	For wooden drawers and kitchen baskets	For wooden drawers and kitchen baskets	For wooden drawers and kitchen baskets	For wooden drawers and kitchen baskets
Extension	Full	Full	Full	Full
Made-in	India	India	Taiwan	Taiwan
Warranty	10 years *Functional	10 years *Functional	10 years *Functional	10 years *Functional
Quality classification	EN 15338, Level 2	EN 15338, Level 2	EN 15338, Level 2	EN 15338, Level 2
Installation	Side	Side	Side	Side
Minimum carcase Depth	Channel Length+ 4 mm	Channel Length+ 4 mm	Channel Length+ 4 mm	Channel Length+ 4 mm
Installation Width	EB 12.7 - check drawing for more details	EB 12.7 - check drawing for more details	EB 12.7 - check drawing for more details	EB 12.7 - check drawing for more details
Gap between side panel and drawer	12.7 mm on each side	12.7 mm on each side	12.7 mm on each side	12.7 mm on each side
Gap between front panel and drawer				4 mm

* Warranty as per Hettich India terms. Hettich India can change the Warranty period from time to time at its discretion.
