Hettich Quadro V6 Channel
Tax included. Shipping calculated at checkout
Hettich has two types of full Extension Quadro V6 channels.

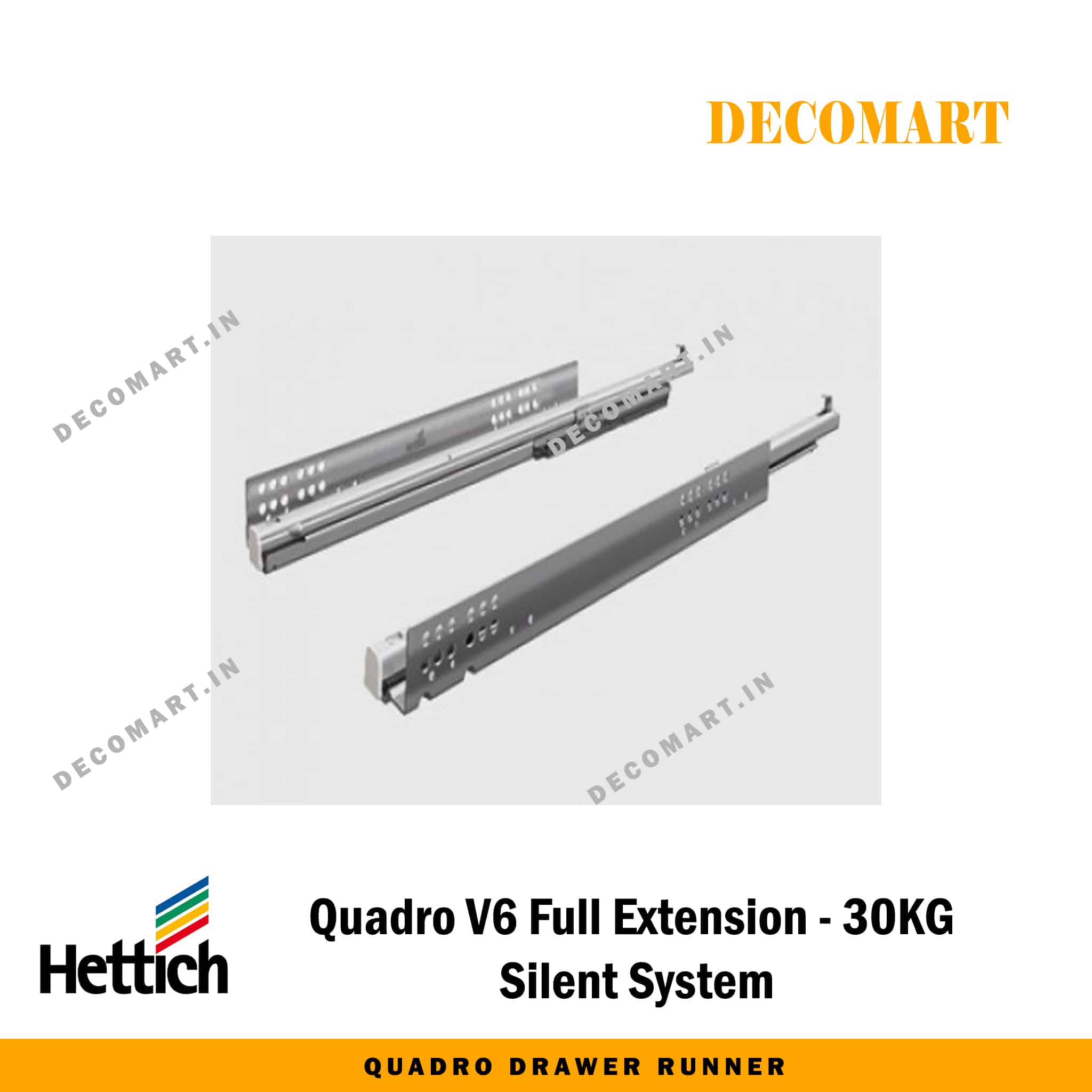

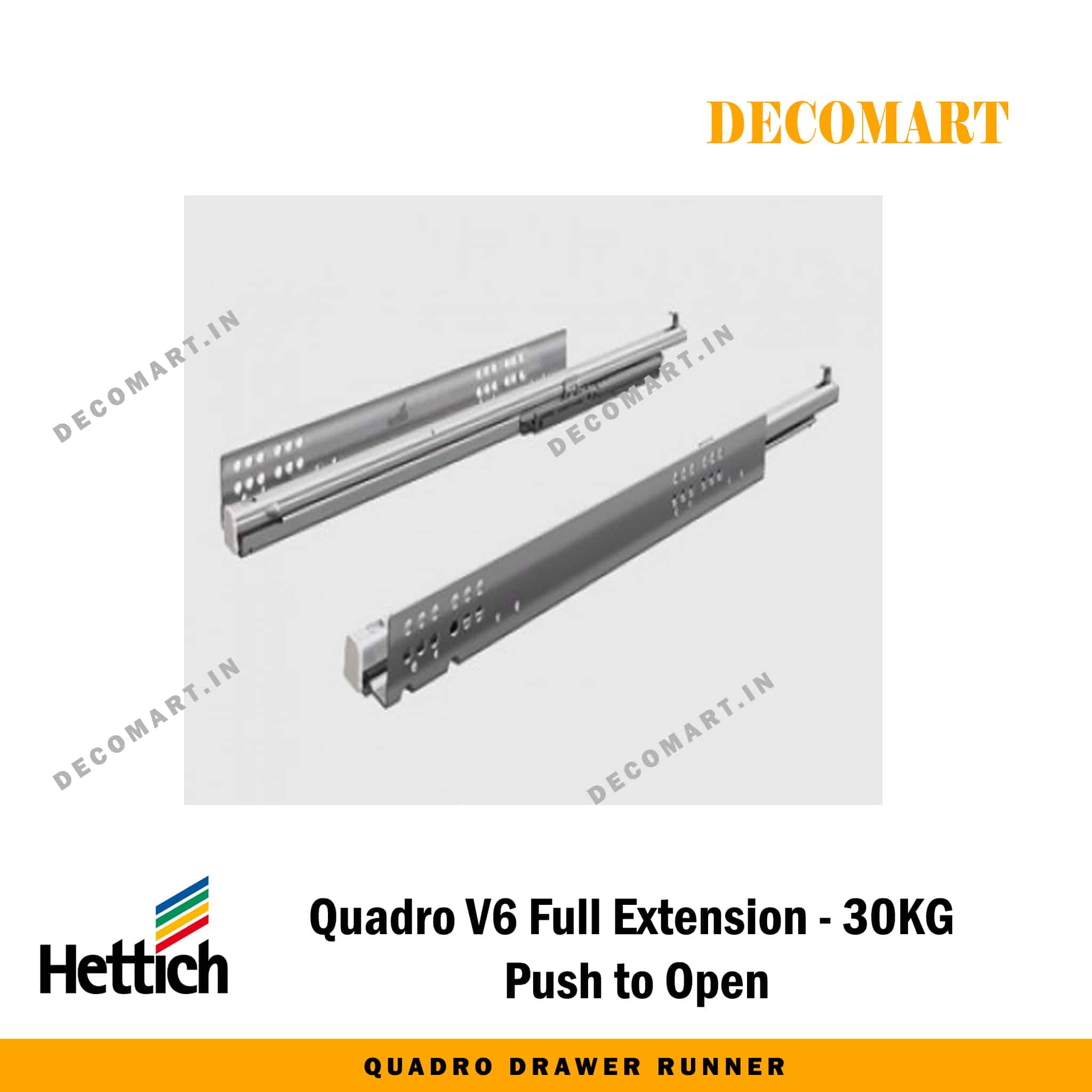

| Quadro V6 Silent System | Quadro V6 Push to Open | |
| Motion Technology | Soft close | Push To Open |
| Material | Galvanised steel | Galvanised steel |
| Load Capacity | 30 kg | 30 kg |
| Usage | For wooden drawers | For wooden drawers |
| Extension | Full (100% open) | Full (100% open) |
| Made-in | Germany | Germany |
| Warranty | 20 years *Functional | 20 years *Functional |
| Quality classification | EN 15338, Level 3 | EN 15338, Level 3 |
| Installation | Bottom | Bottom |
| Minimum carcase Depth | Quadro size+13mm | Quadro size+13mm |
| Installation Width | EB 20 - check drawing for more details | EB 20 - check drawing for more details |
| Gap between side panel and drawer | 4 mm on each side (considering thickness of drawer side panel is 16 mm) | 4 mm on each side (considering thickness of drawer side panel is 16 mm) |
| Gap between front panel and drawer | 1.5 mm | 4 mm |
| Drawer panel thickness | Max 16 mm | Max 16 mm |
| Adjustment | Height only | Height only |
- 1 Set Contains, Left + Right Quadro Runner & Left + Right Catch.
* Warranty as per Hettich India terms. Hettich India can change the Warranty period from time to time at its discretion.
Hettich Quadro V6 Channel
Sale priceRs. 2,096.00
Regular priceRs. 3,290.00
