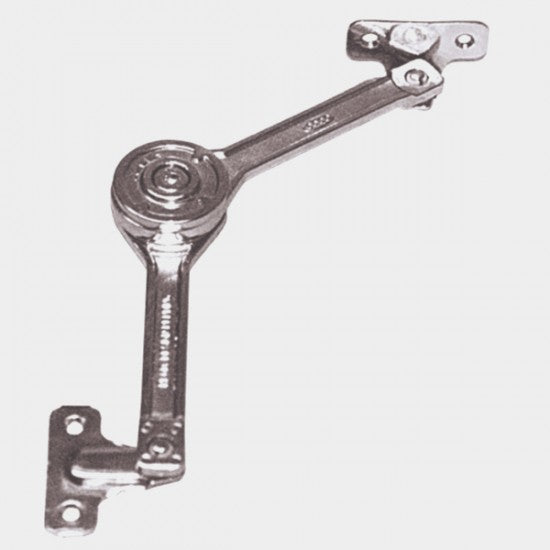

Ebco Cabinet Stay

Cabinet Stay - Regular

• Unique design with a built-in braking arm
• To be used in cabinets having upward opening shutters
• Recommended to use with Slip on / Click on Hinges (Overlay)
• Fittings can be varied for different opening angles
• Manufactured out of die-cast zinc and chrome plated
• Max. Shutter Load :

               1) with one stay - 4 Kgs

               2) with two stays - 7 Kgs
• System 32 compatible

Cabinet Stay - Heavy

• Ideal for overhead cabinet shutters.
• Flexible to mount for three different opening angles - 75º, 90º & 110º.
• Pressure can be adjusted with Allen key.
• Recommended to use with 'Ebco' Slip on / Click on Hinges (Overlay)
• Max. recommended shutter size:

             1) with one  stay - 900 x 450 x 18mm

             2) with two stays -  900 x 650 x 18mm

• Max. Shutter Load :

             1) with one stay - 6 Kgs

             2) with two stays - 13.3 Kgs

• System 32 compatible.
• Manufactured out of Zinc alloy and Nickel Plated.
