Ebco Glass Door Hinges

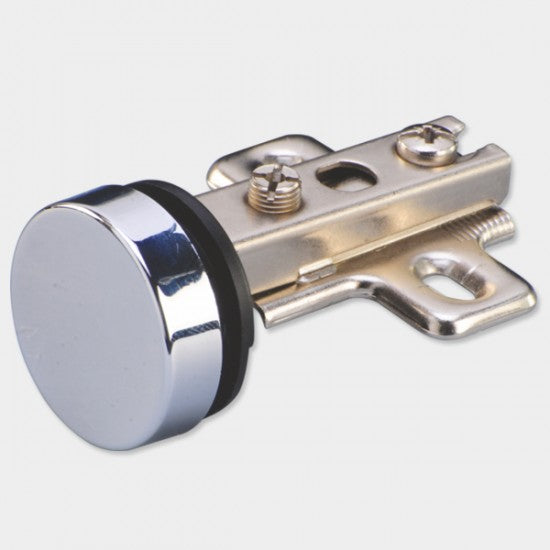

Glass Door Hinge - Regular

• Available in Full overlay, Half overlay & Inset.
• Max. opening: 100°.
• Max. Shutter size: 600mm x 350mm for 2 hinges.
• Shutter Thickness: 4 mm to 6 mm.
• Shutter cavity: Ø26mm throughout, cavity 4mm from edge.
• Finish: Nickel Plated.

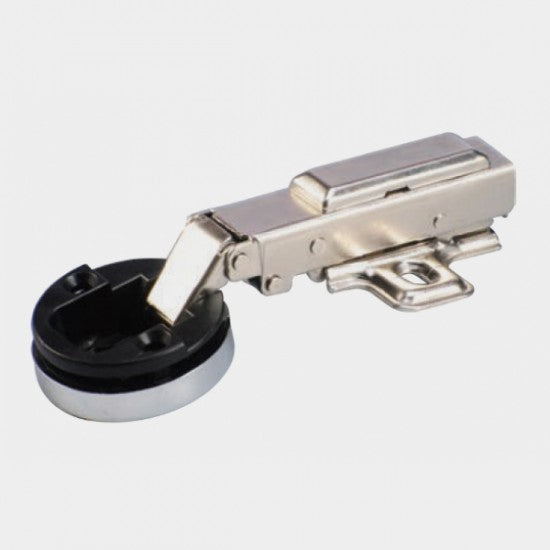

Glass Door Hinge - Soft Close

• Specially designed for glass shutters.
• Max. Opening: 105°.
• Max. Shutter size: 600mm x 400mm for 2 hinges.
• Shutter Thickness: 4 mm to 6 mm.
• Shutter cavity: Ø35mm throughout, cavity 4mm from edge.
• Finish: Nickel Plated.
