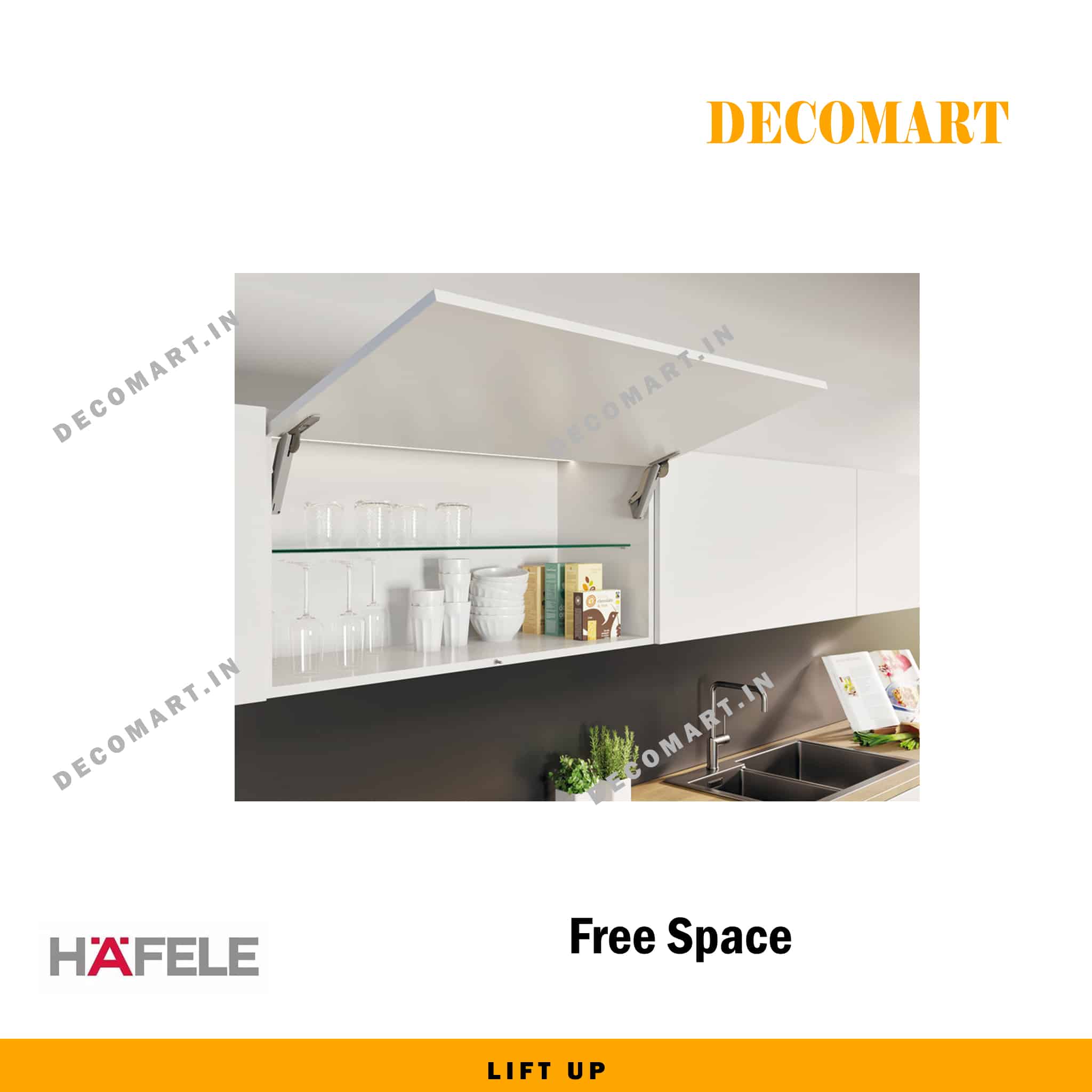

Hafele Free Space Lift Up

Area of application

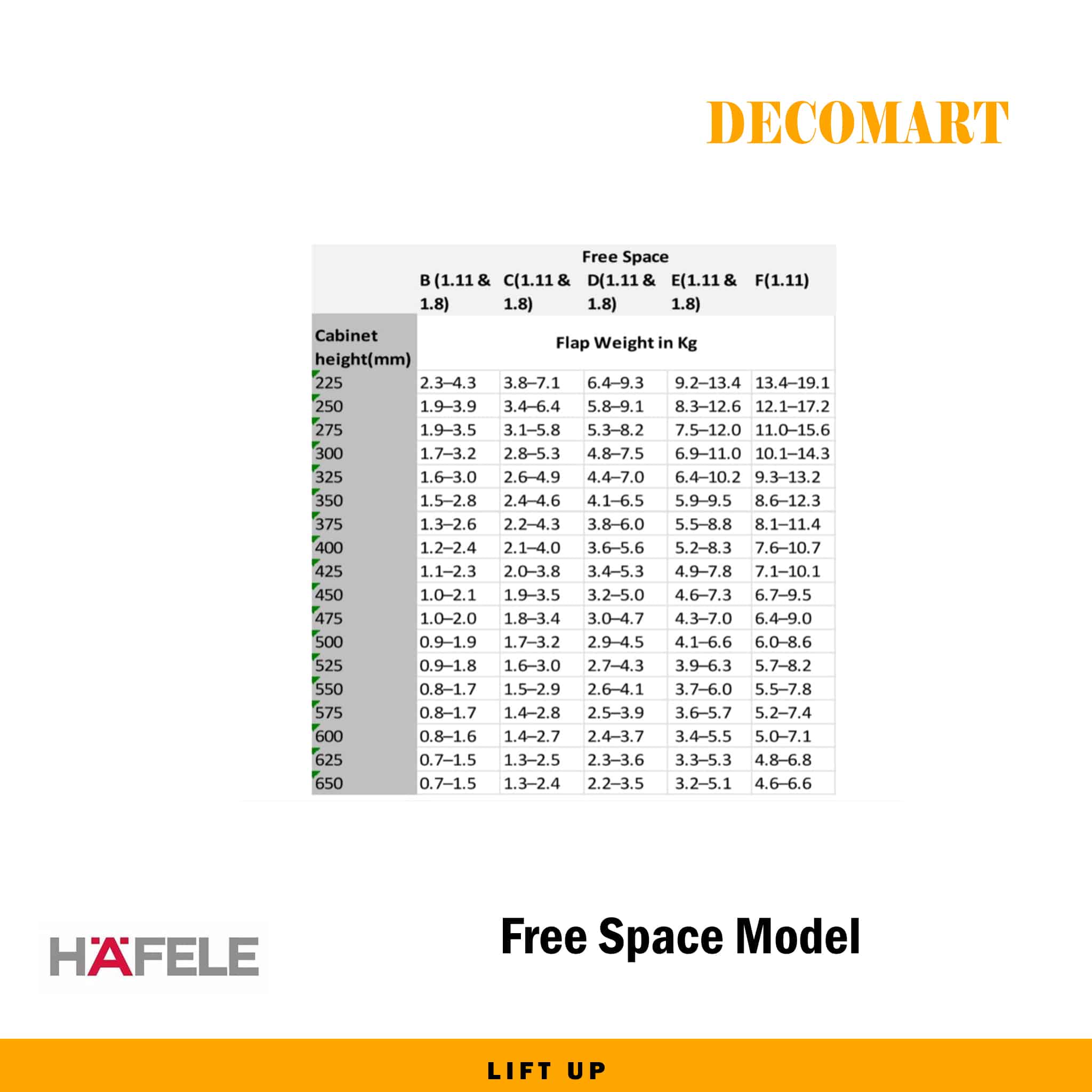

for heavy stay flap applications up to 15 kg (with cabinet height of 600 mm),
for standard applications with handle,
for one-piece flaps made from wood or with aluminium frame, from frame width of 45 mm

Material
Housing: Plastic,
Front fixing brackets and support lever: Steel

Colour/finish
Front fixing bracket: Nickel plated

Lid material: Wood
Flap type: one-piece
Opening angle: 90 degree
For lid height: 650 mm
For cabinet height: 350 mm
Installation depth: 72 mm
Installation height: 183 mm
Adjustment facility: Height, side, tilting angle, holding power

Installation
Fitting for screw fixing with pre-mounted Euro screw,
Front panel without tools, for sliding onto pre-mounted fixing screws
