Hafele Softclose Hinges

Sale priceRs. 257.00 Regular priceRs. 396.00
Save Rs. 139.00

Tax included. Shipping calculated at checkout


SKU: 315.07.042
Model: Slide-On
Crank: 0 Crank -Overlay

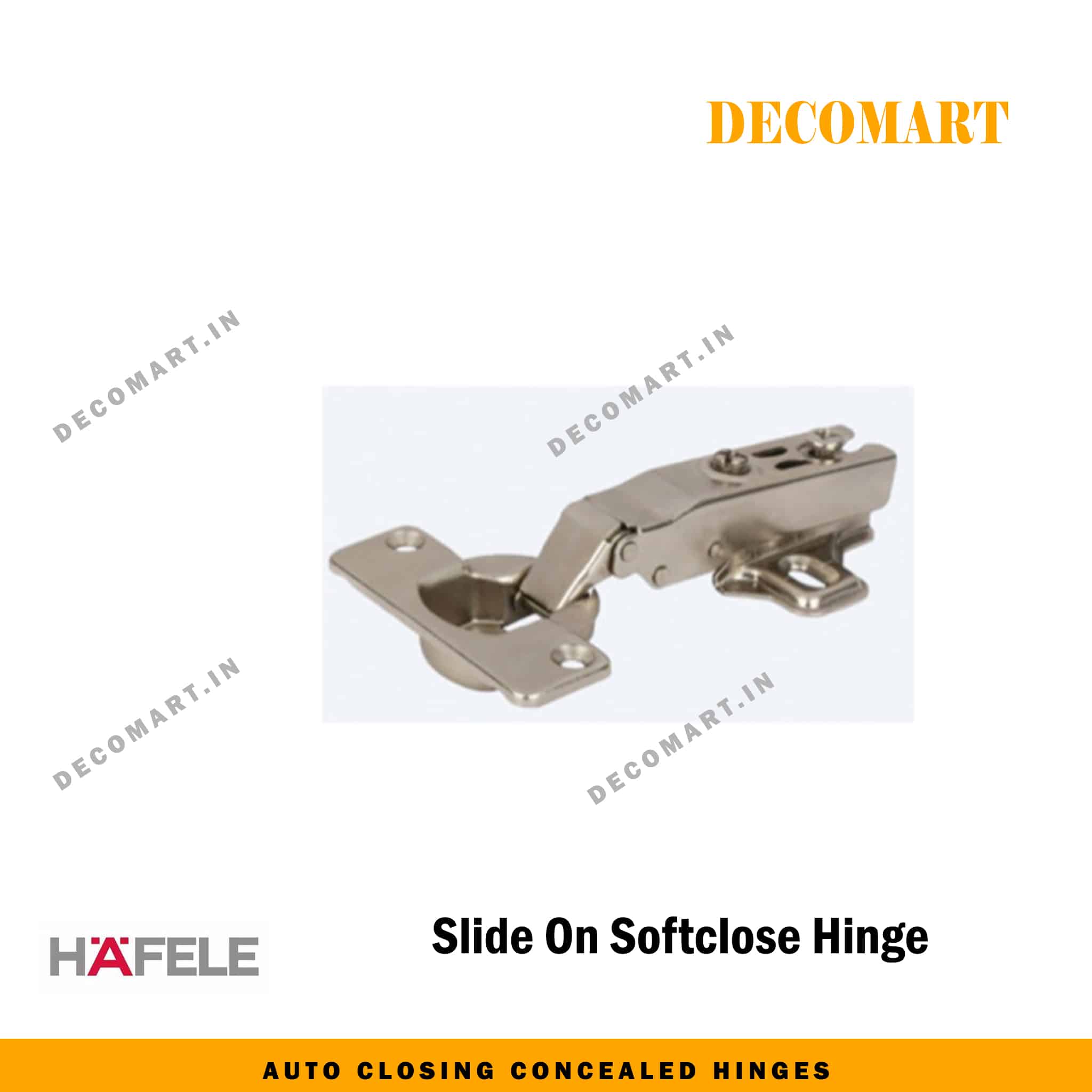

Slide-on

Version: With soft closing mechanism
Concealed hinge version: Slide-On
Material: Steel
Door Thickness: 14 to 24 mm
Opening angle: 105°
Cup drilling depth: 12.5 mm
Drilling pattern: 48/6
Adjustment facility: Side adjustment 0–3 mm, Height adjustment ±3 mm, Depth adjustment -1–4 mm
Installation: Screw Fixing

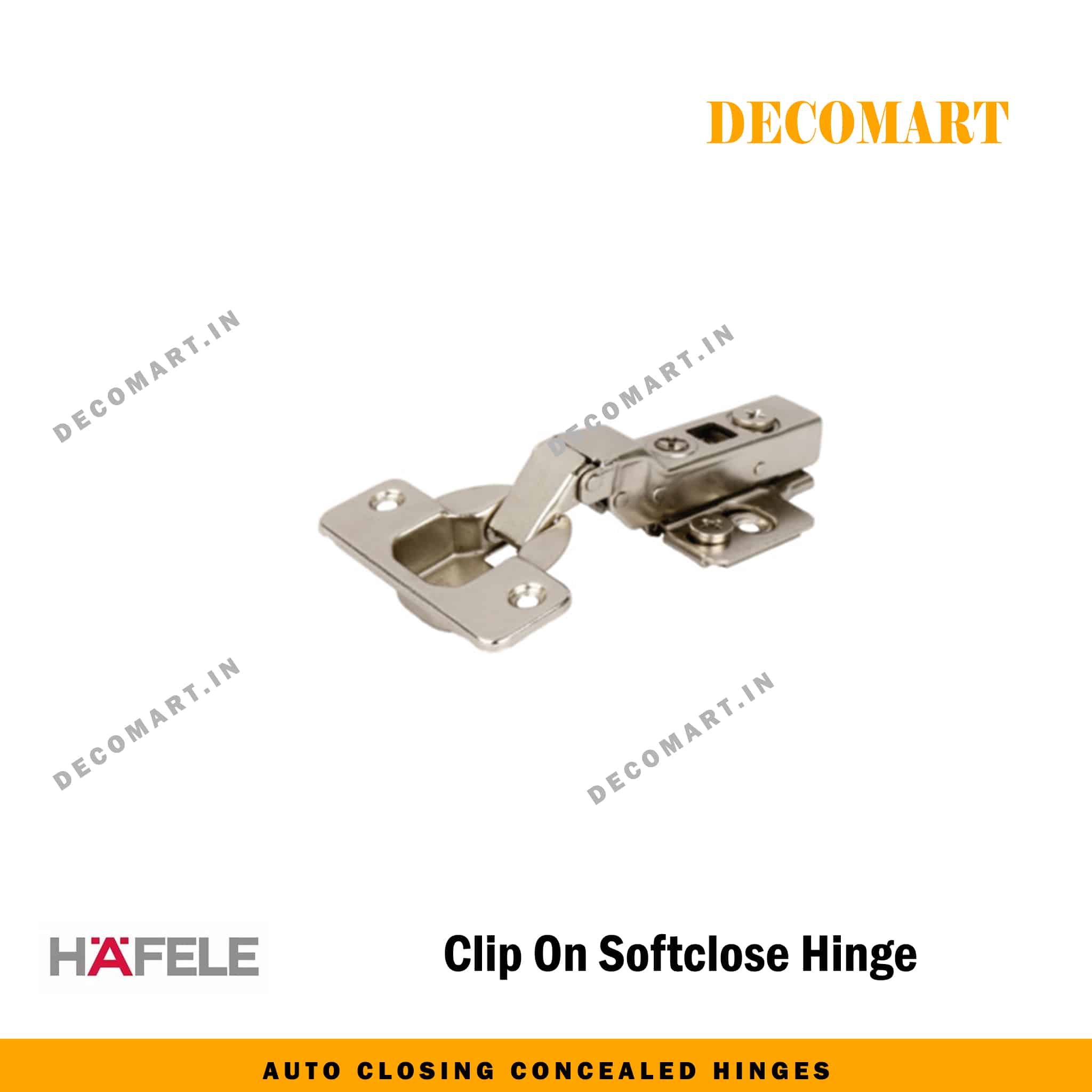

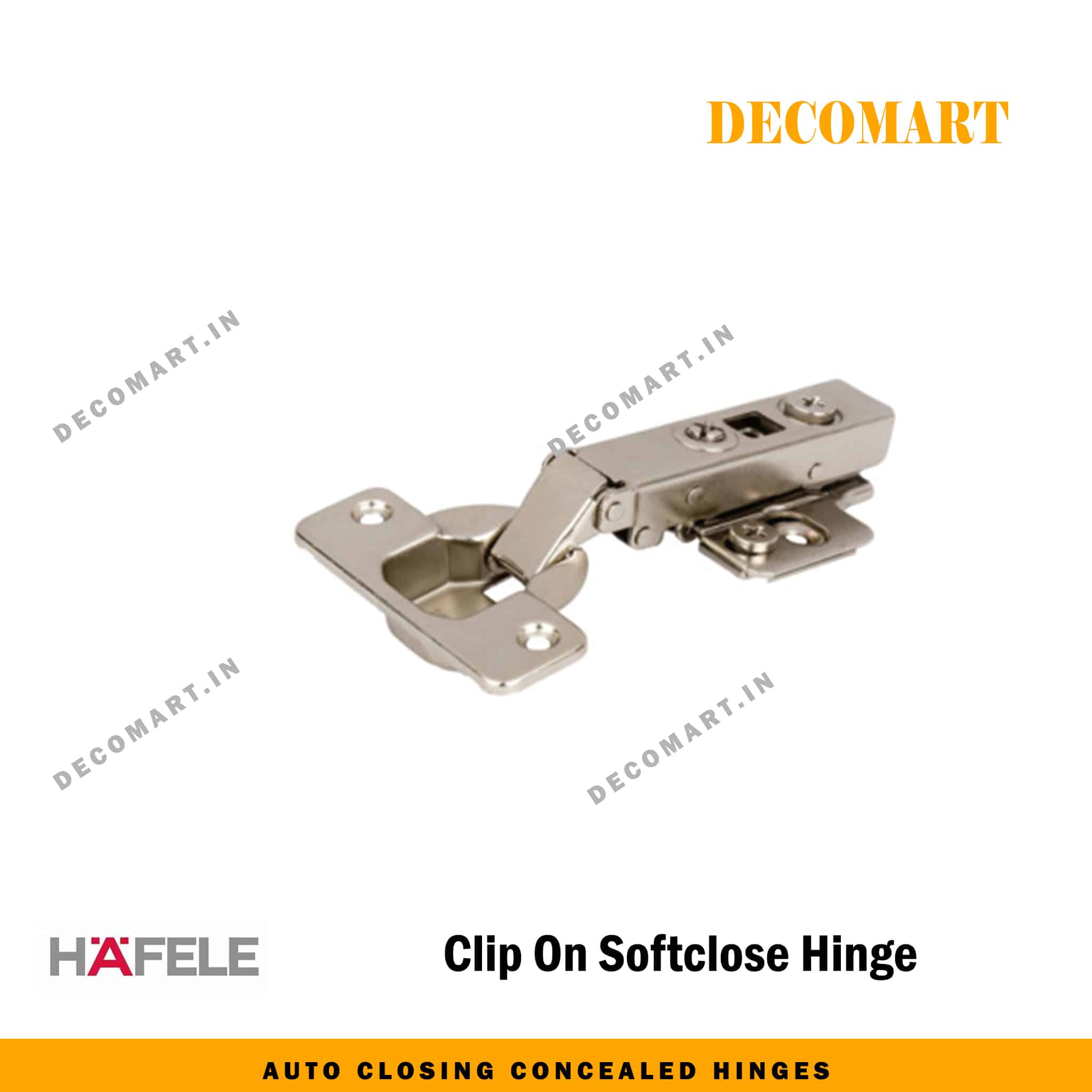

Clip-On

Version: With soft closing mechanism
Concealed hinge version: Clip-On
Material: Steel
Door Thickness: 14 to 24 mm
Opening angle: 110°
Cup drilling depth: 12.5 mm
Drilling pattern: 48/6
Adjustment facility: Side adjustment 0–3 mm, Height adjustment ±3 mm, Depth adjustment -1–4 mm
Installation: Screw Fixing

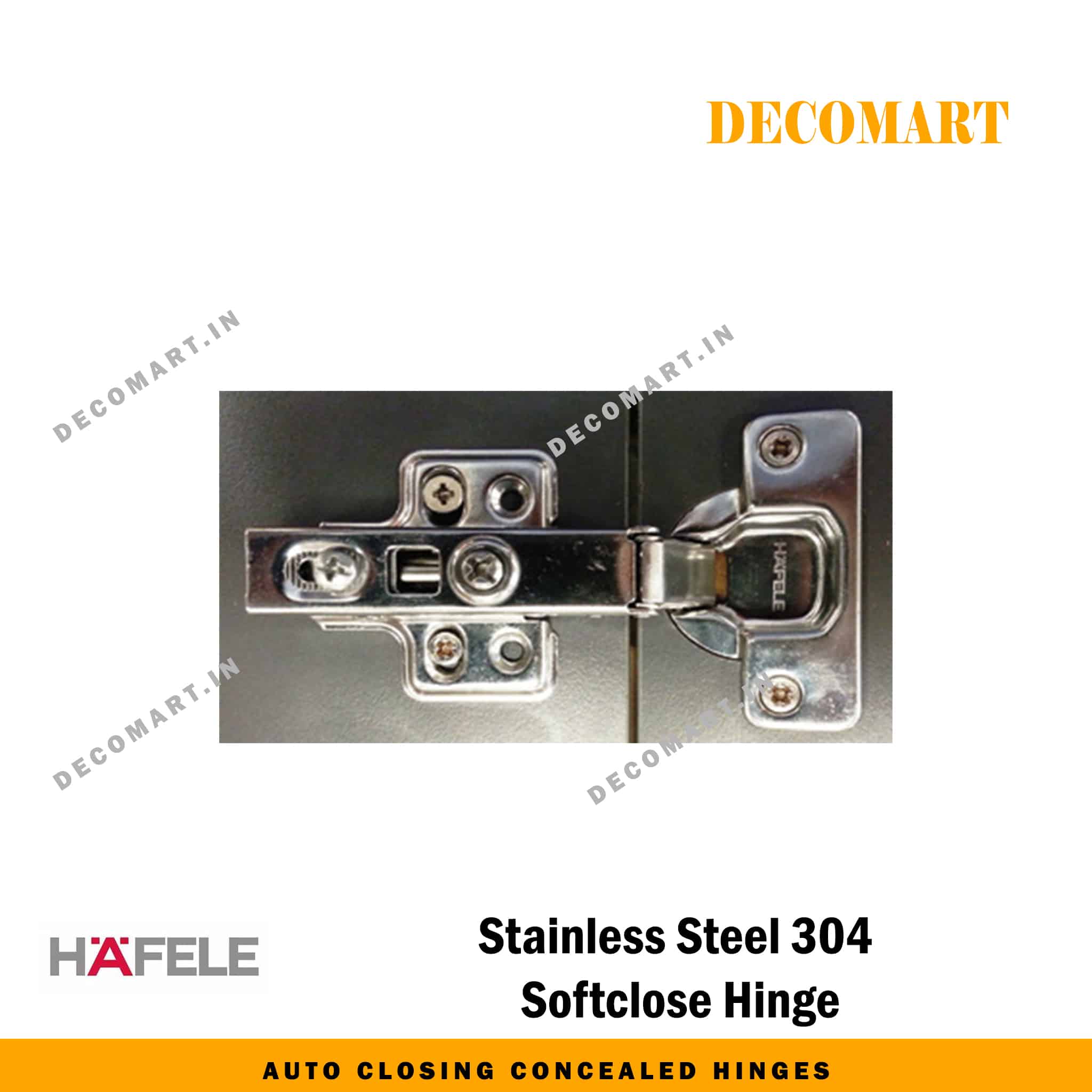

SS 304

Version: With soft closing mechanism
Material: Stainless steel 304 grade
Door Thickness: 14 to 24 mm
Opening angle: 104°
Cup drilling depth: 12.5 mm
Drilling pattern: 48/6
Adjustment facility: Side adjustment 0–3 mm, Height adjustment ±3 mm, Depth adjustment -1–4 mm
Installation: Screw Fixing

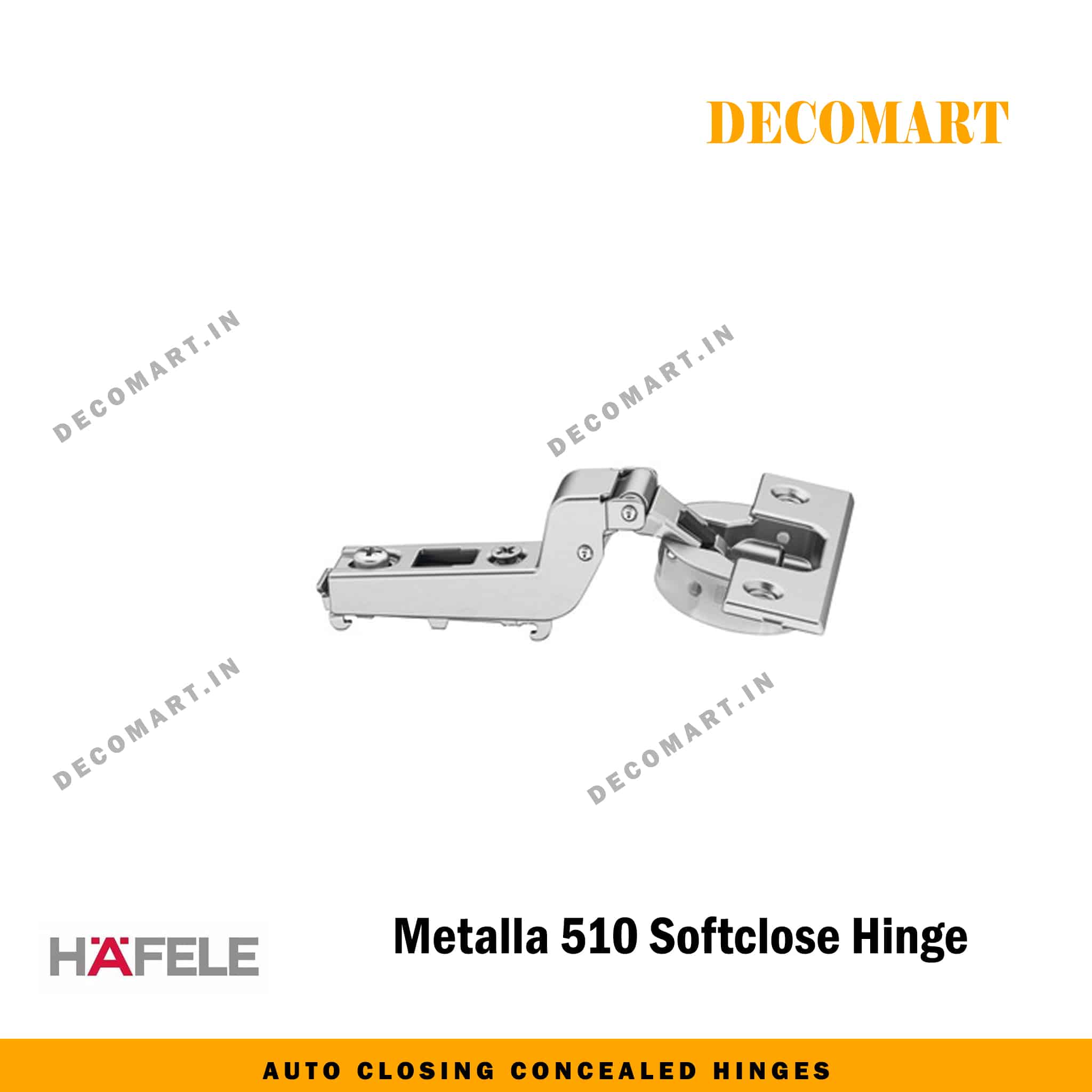

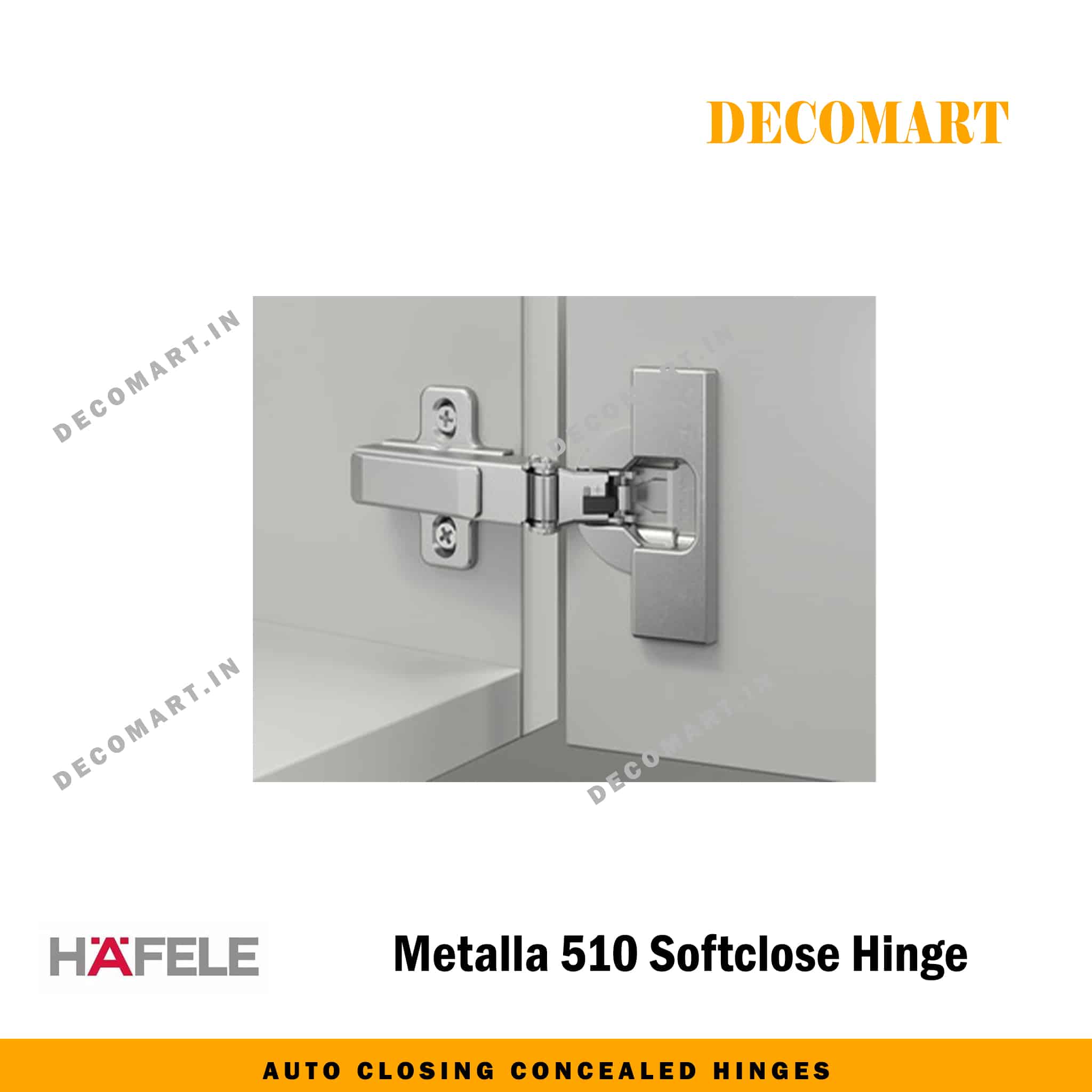

Metalla 510

Version: With soft closing mechanism
Material:  steel
Door Thickness: 14 to 24 mm
Opening angle: 110°
Cup drilling depth: 12 mm
Drilling pattern: 48/6
Adjustment facility: Side adjustment 0–3 mm, Height adjustment ±3 mm, Depth adjustment -1–4 mm
Installation: Screw Fixing
