Hettich Intermat, Sensys Thick Door Hinges

Hettich has 3 types of Thick Door Hinges.

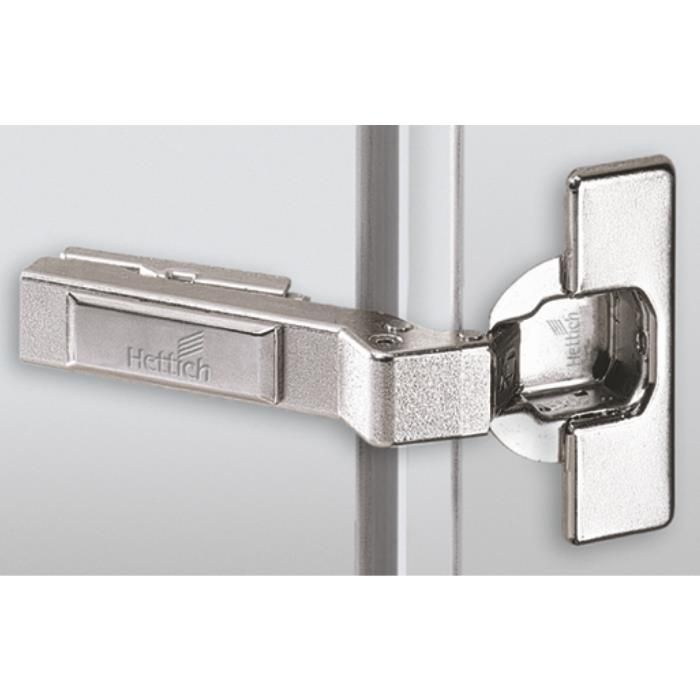

Intermat 9936 Hinges

• Non Softclose concealed hinge with clip on.
• Usage - Kitchen and cupboards where door thickness is more.
• 95 degree door opening angle
• 20 years *Functional Warranty.
• For Door Thickness upto 14-32 mm
• Hinge material - Steel, Nickel-Plated.
• Cup diameter 35 mm.
• Cup depth 11.1 mm.
• Integrated overlay adjustment +/-2 mm.
• Integrated depth adjustment +2.5 mm / - 1.5 mm.
• Height adjustment at mounting plate.

• 1 Set Contains, 2 Hinges, 2 Mounting Plates & 2 Cover caps
• Hinges shown in the image are just for illustration purpose, Mounting Plate & Cranking will differ for different variants.

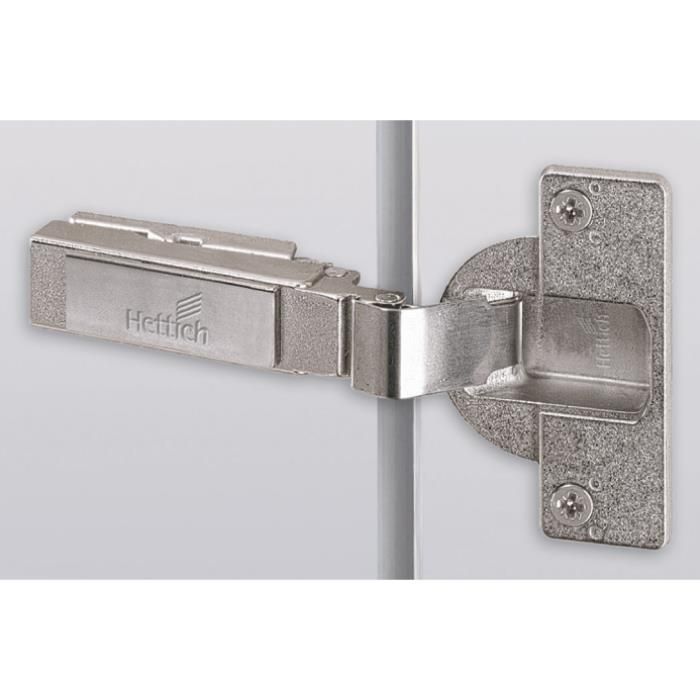

Intermat 9935 Hinges

• Non Softclose concealed hinge with clip on.
• Usage - Pocket door system, Kitchen and cupboards where door thickness is more.
• 95 degree door opening angle
• 20 years *Functional Warranty.
• For Door Thickness upto 16-43 mm
• Hinge material - Zinc die-cast Nickel-Plated.
• Cup diameter 40 mm.
• Cup depth 13.7 mm.
• Integrated overlay adjustment +/-2 mm.
• Integrated depth adjustment +2.5 mm / - 1.5 mm.
• Height adjustment at mounting plate.

• 1 Set Contains, 2 Hinges, 2 Mounting Plates & 2 Cover caps
• Hinges shown in the image are just for illustration purpose, Mounting Plate & Cranking will differ for different variants.

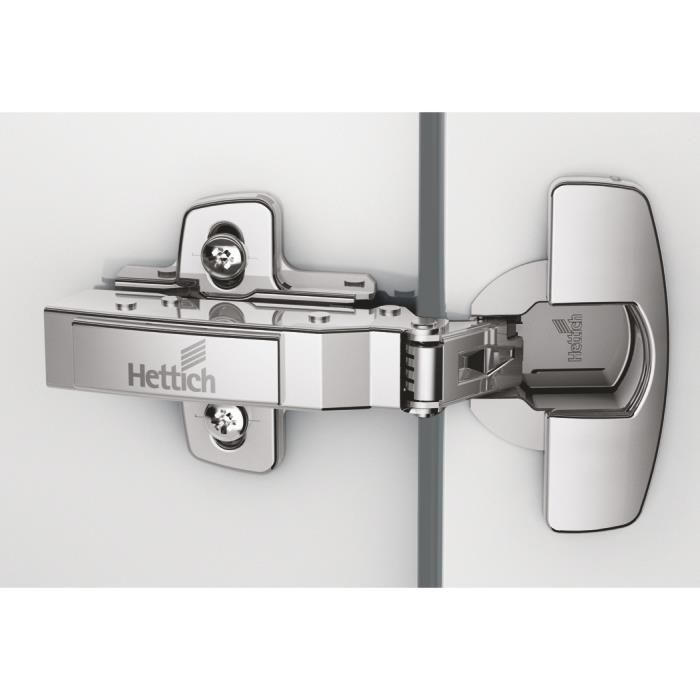

Sensys 8631i Softclose Hinges

• German Quality Integrated Softclose hinge with clip on.
• Usage - Pocket door system, Kitchen and cupboards where door thickness is more.
• 95 degree door opening angle
• 20 years *Functional Warranty.
• For Door Thickness upto 15-32 mm
• Hinge material - Steel, Nickel-Plated.
• Cup diameter 35 mm.
• Cup depth 12.8 mm.
• Integrated overlay adjustment +/-2 mm.
• Integrated depth adjustment +3 mm / - 2 mm.
• Height adjustment at mounting plate.

• 1 Set Contains, 2 Hinges, 2 Mounting Plates & 2 Cover caps
• Hinges shown in the image are just for illustration purpose, Mounting Plate & Cranking will differ for different variants.

* Warranty as per Hettich India terms. Hettich India can change the Warranty period from time to time at its discretion.
