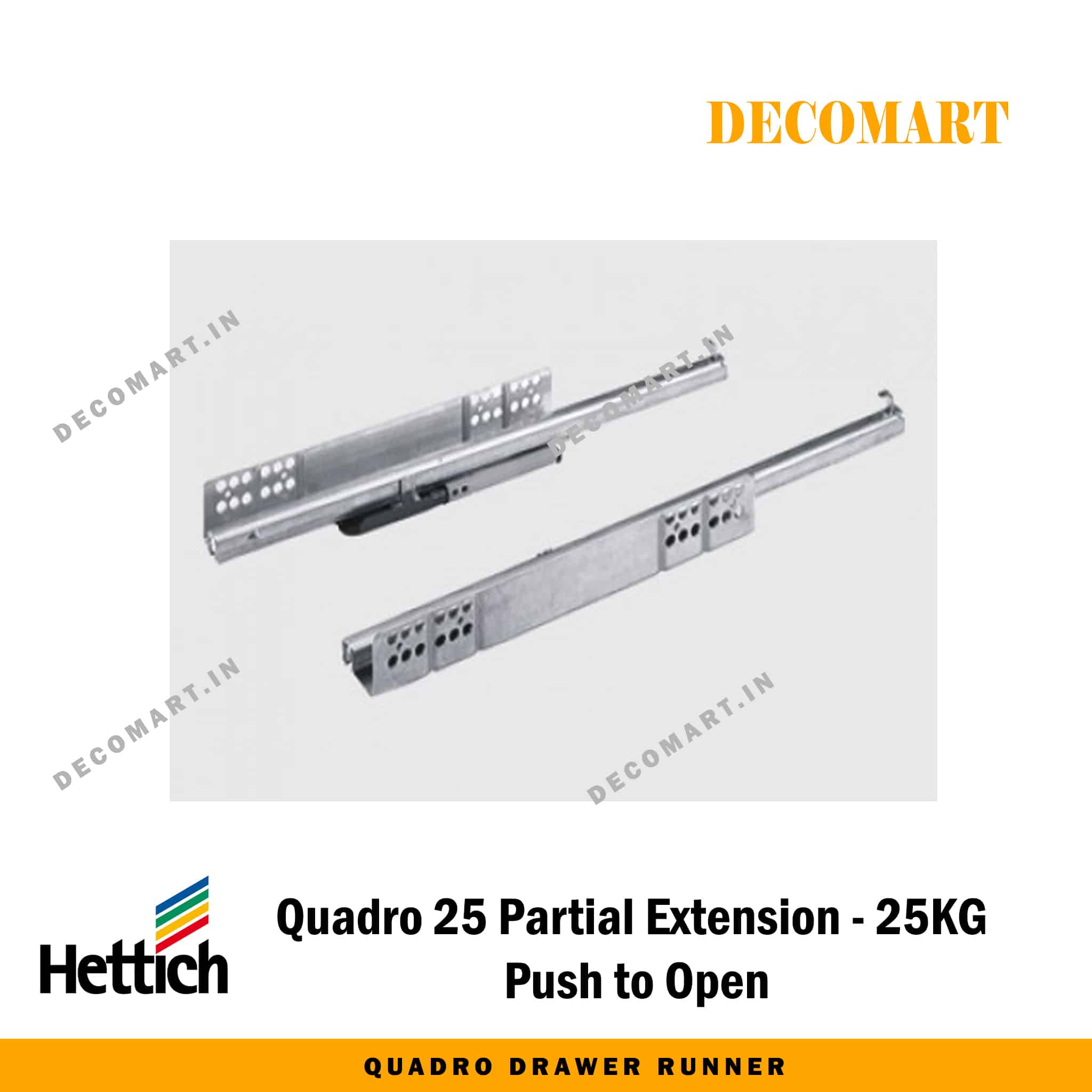

Hettich Quadro 25 Partial Extension Channel
Hettich has two types of Partial Extension Quadro channels.
| Quadro 25 Silent System | Quadro 25 Push to Open | |
| Motion Technology | Soft close | Push To Open |
| Material | Galvanised steel | Galvanised steel |
| Load Capacity | 25 kg | 25 kg |
| Usage | For wooden drawers | For wooden drawers |
| Extension | Partial (Around 80% open) | Partial (Around 80% open) |
| Made-in | Germany | Germany |
| Warranty | 20 years *Functional | 20 years *Functional |
| Quality classification | EN 15338, Level 3 | EN 15338, Level 3 |
| Installation | Bottom | Bottom |
| Minimum carcase Depth | Quadro size+13mm | Quadro size+13mm |
| Installation Width | EB 20 - check drawing for more details | EB 20 - check drawing for more details |
| Gap between side panel and drawer | 4 mm on each side (considering thickness of drawer side panel is 16 mm) | 4 mm on each side (considering thickness of drawer side panel is 16 mm) |
| Gap between front panel and drawer | 1.5 mm | 4 mm |
| Drawer panel thickness | Max 16 mm | Max 16 mm |
| Adjustment | Height only | Height only |
Quadro 25 Silent System/Push to Open Extension Loss Chart
| Nominal Length | Extension Loss |
| 250 mm | 50 mm |
| 300 mm | 50 mm |
| 350 mm | 62 mm |
| 400 mm | 74 mm |
| 450 mm | 86 mm |
| 500 mm | 98 mm |
| 550 mm | 98 mm |
- 1 Set Contains, Left + Right Quadro Runner & Left + Right Catch.
* Warranty as per Hettich India terms. Hettich India can change the Warranty period from time to time at its discretion.
Hettich Quadro 25 Partial Extension Channel
Sale priceRs. 728.00
Regular priceRs. 1,234.00 (/)
