Hettich SideLine 18 Sliding System

Hettich SideLine 18 Sliding System

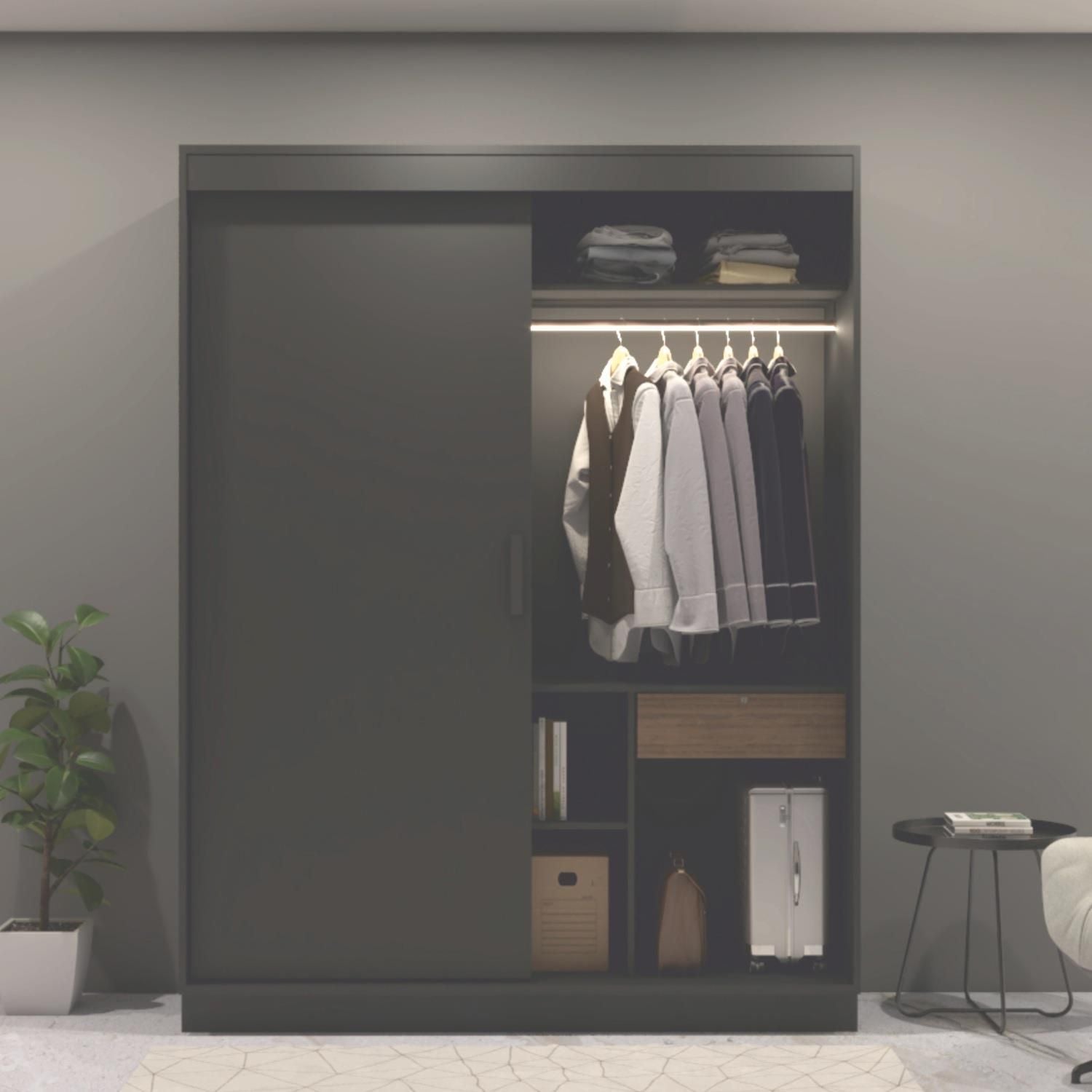

• Sliding door system on Twin Track

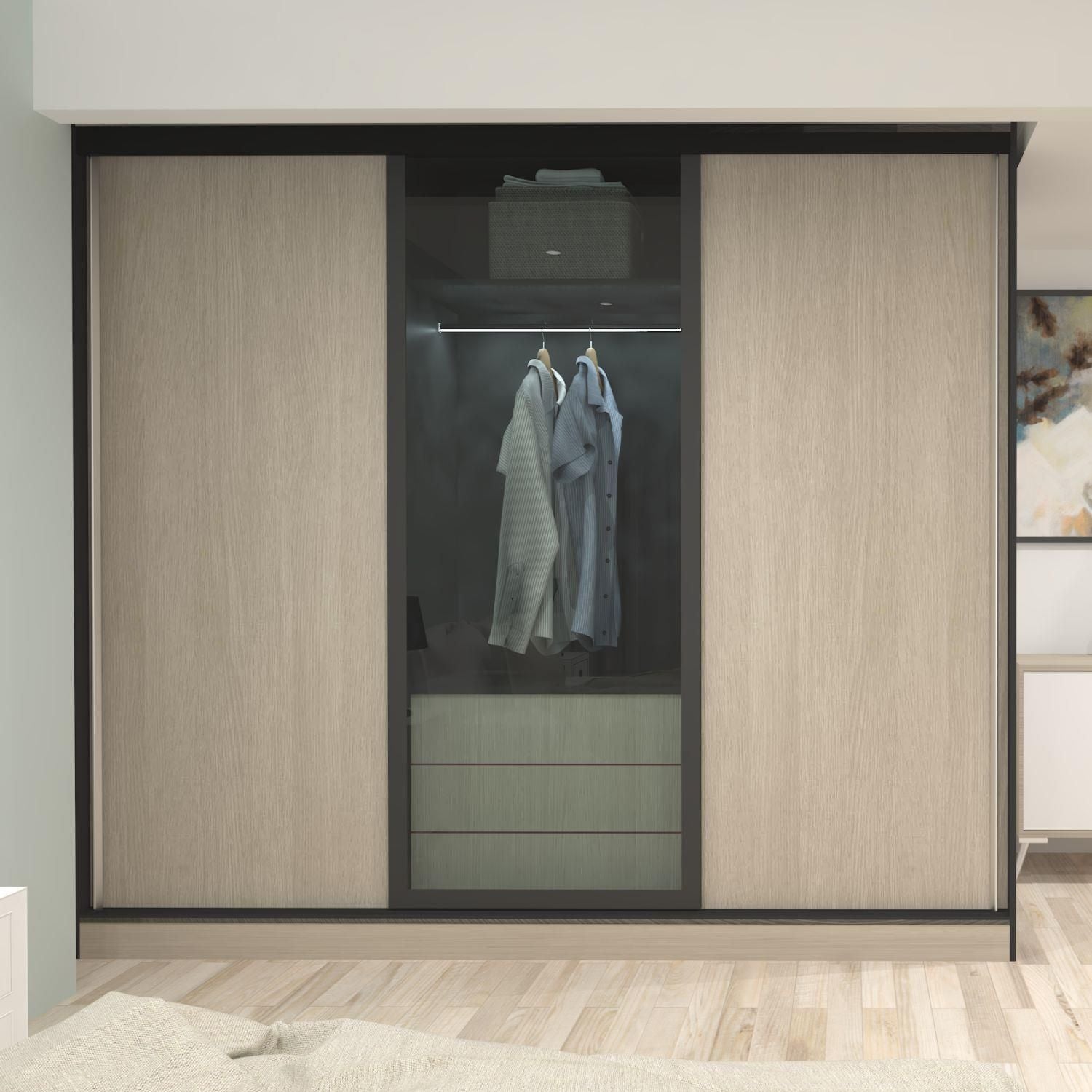

• 2/3 door Inset door position
• Compatible with both wooden and Alu. Frame door
• Max. door height 2400 mm
• Door width 700-1200 mm
• Track Length:
  • 2 door -> 2400 mm
  • 3 door -> 3600 mm
• Max Door weight up to 50 kg per door
• Soft opening & soft closing
• No of Cycle Tested: 20,000 cycles
• Standard Door gap of 11.9 mm for all door thickness
• Compatible with 18-25 mm Wooden door thickness /55 mm Aluminium Profile
